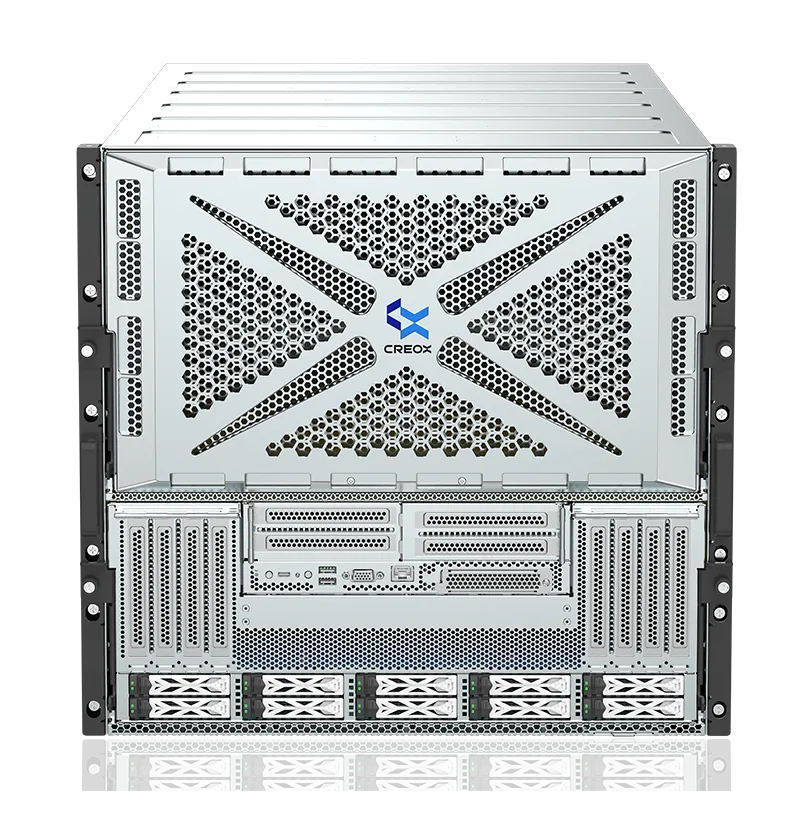

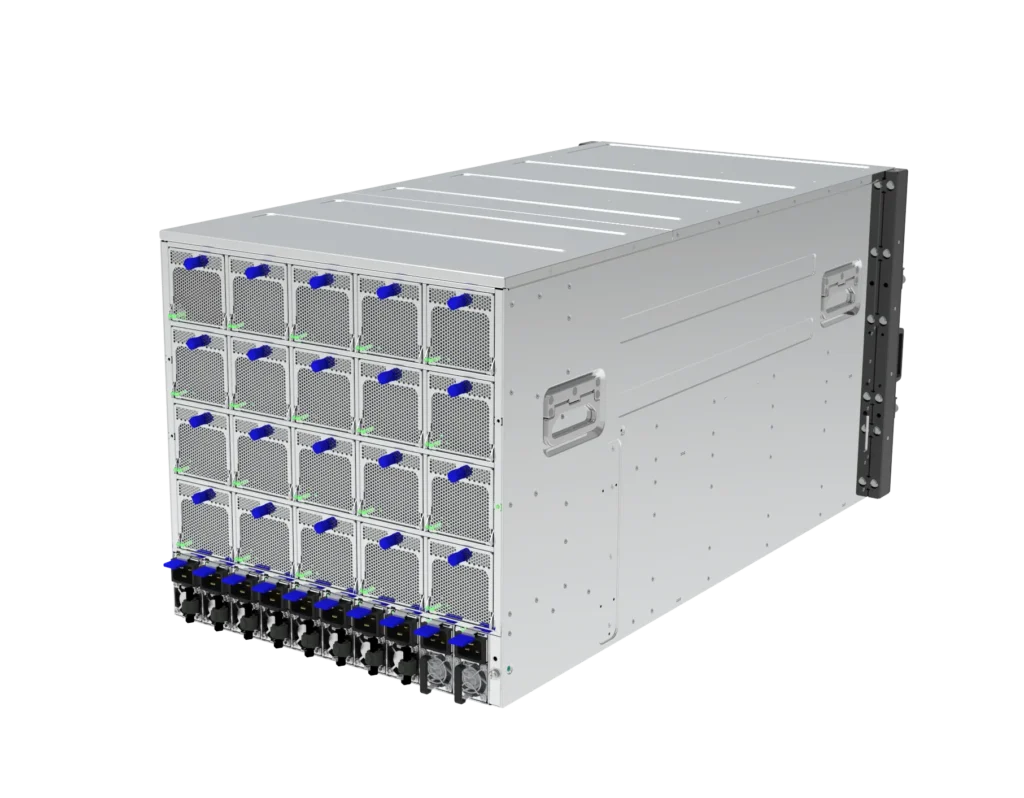

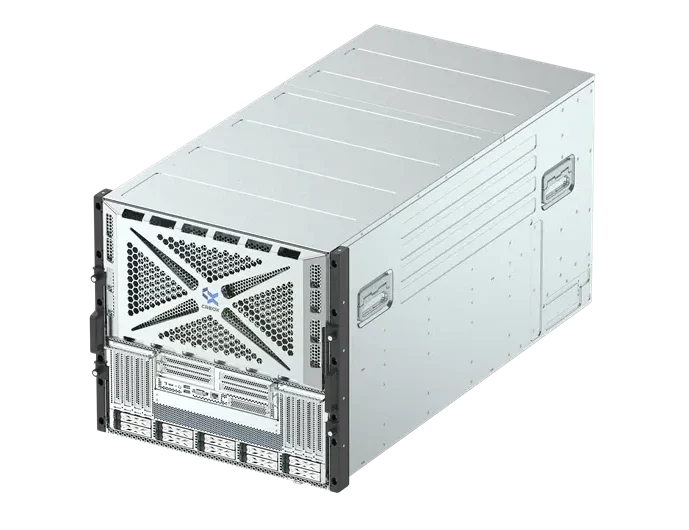

The A90X6 is a 10U AI server designed for the B200 platform, leveraging Intel’s latest Birch Stream architecture and powered by 6th Generation Intel® Xeon® Scalable Processors (Granite Rapids).
Engineered for high performance and scalability, the A90X6 delivers robust computing power optimized for AI cloud, data center, and enterprise IT deployments.
AI cloud computing, LLM Training, Inference, HPC
| CPU | 2* Intel® Xeon® 6700E/6500P/6700P Processor up to 350W |
| GPU | 8* HGX B200 air cooling |
| Memory | Up to 32* DDR5 DIMM Slot, support RDIMM up to 6400MT/s |
| Storage | 8* SFF NVMe slot (from switch) 2* SFF SATA/NVMe slot (from CPU, SATA need Add-in RAID card) |
| PCIe Extension | Front PCIe Slot: 8* X16 FHHL/HHHL (from switch) Front PCIe Slot: 2* X16 FHHL or 4* X8 FHHL (from CPU) |
| Enclosure Management | BMC: AST2600, 1* dedicated RJ45 MGMT port |
| IO | 2* USB3.0 Type-A Receptacle 1* PWR BTN with 1* PWR indicator 1* Status LED 1* VGA, 1* UART Port Over Type C 1* UID button & LED 1* GbE MGMT Port |
| Cooling | 20* 8086 FANs, N+1 Redundant |
| Operating Temp. | 10oC – 35oC |
| PSU | 2* 185mm Redundant 2700W HVDC/AC Input, 12V Output PSUs 8* 185mm Redundant 3200W HVDC/AC Input, 54V Output PSUs |
| Dimension | 440mm (H) x 448mm (W) x 900mm (D) |
