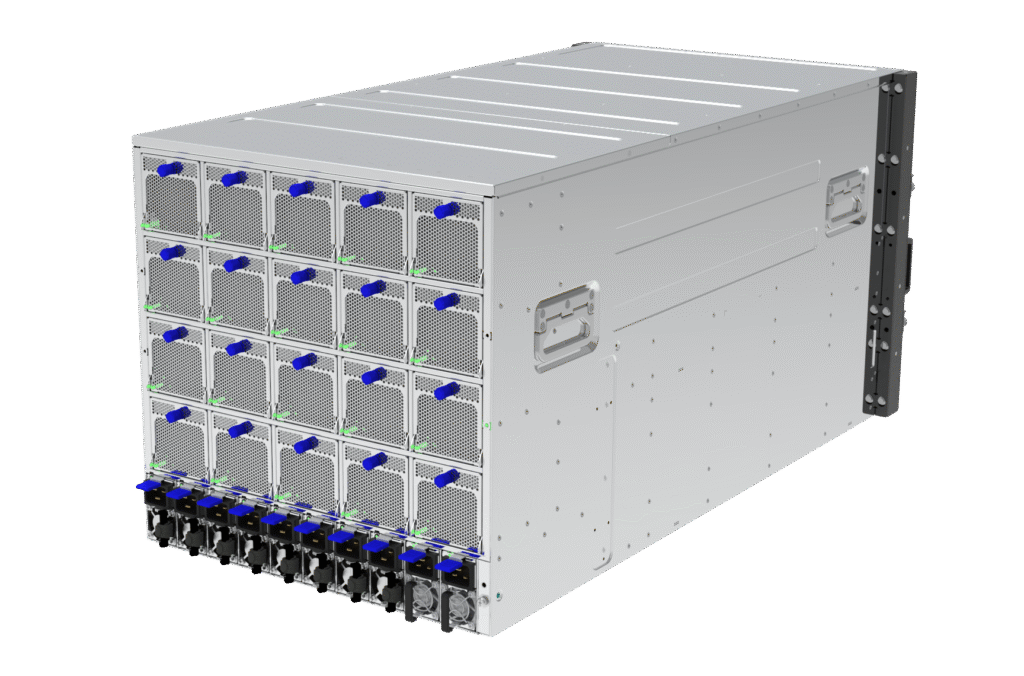

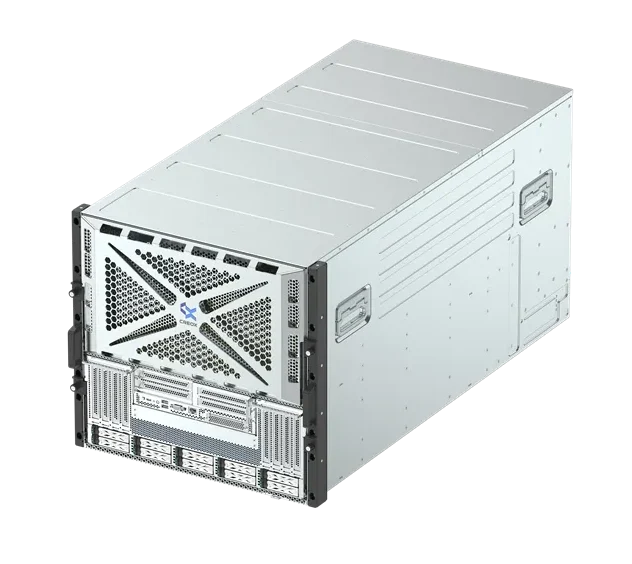

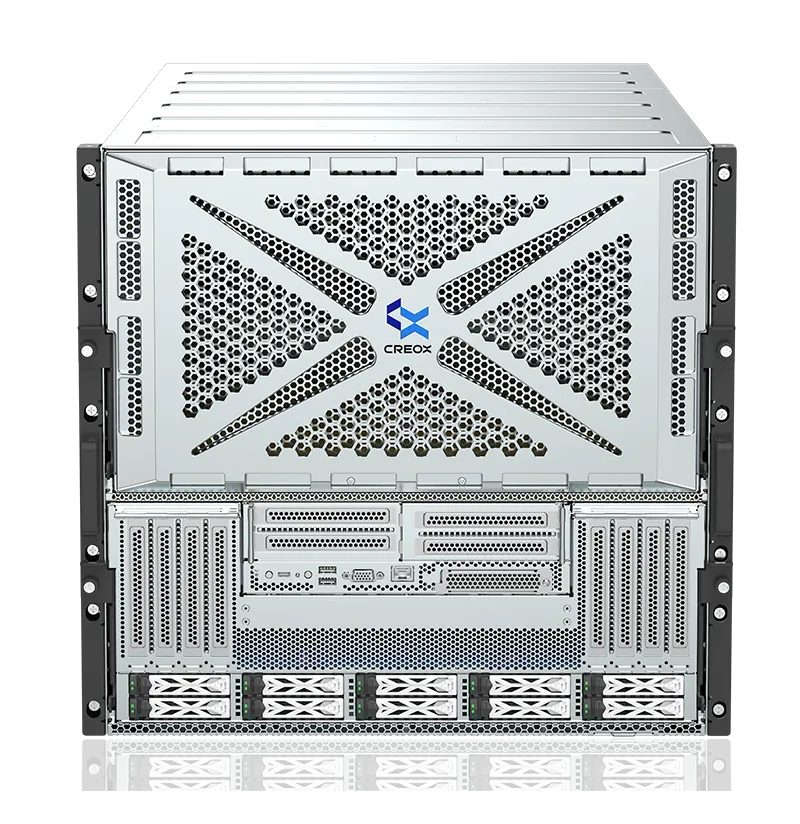

The A96X6 is a 10U AI server designed for the B300 platform, built on Intel’s latest Birch Stream architecture. Powered by 6th Generation Intel® Xeon® Scalable Processors (Granite Rapids), it delivers exceptional performance, scalability, and reliability.
Engineered for high-density compute environments, the A96X6 seamlessly integrates across cloud datacenters and enterprise AI infrastructures, providing a robust foundation to accelerate modern AI workloads.
AI cloud computing, LLM Training, Inference, HPC
| CPU | 2* Intel® Xeon 6700E/6500P/6700P Processor up to 350W |
| GPU | 8* HGX B300 SXM air cooling |
| Memory | Up to 32* DDR5 DIMM Slot, support RDIMM up to 6400MT/s |
| Storage | 10pcs U.2 NVMe |
| PCIe Extension | 4 FHHL/HHHL (X16) +1FHHL/HHHL (X16, reserved) |
| Enclosure Management | BMC: AST2600, 1* dedicated RJ45 MGMT port |
| IO | 2* USB3.0 Type-A Receptacle 1* PWR BTN with 1* PWR Indicator 1* Status LED 1* VGA 1* UART Port Over Type C 1* UID button& LED 1* GbE MGMT Port |
| Cooling | 20* 8086 FANs, N+1 Redundant |
| Operating Temp. | 10oC – 35oC |
| PSU | 2* 185mm Redundant 2700W HVDC/AC Input, 12V Output PSUs 8* 185mm Redundant 3200W HVDC/AC Input, 54V Output PSUs |
| Dimension | 440mm (H) x 448mm (W) x 900mm (D) |
