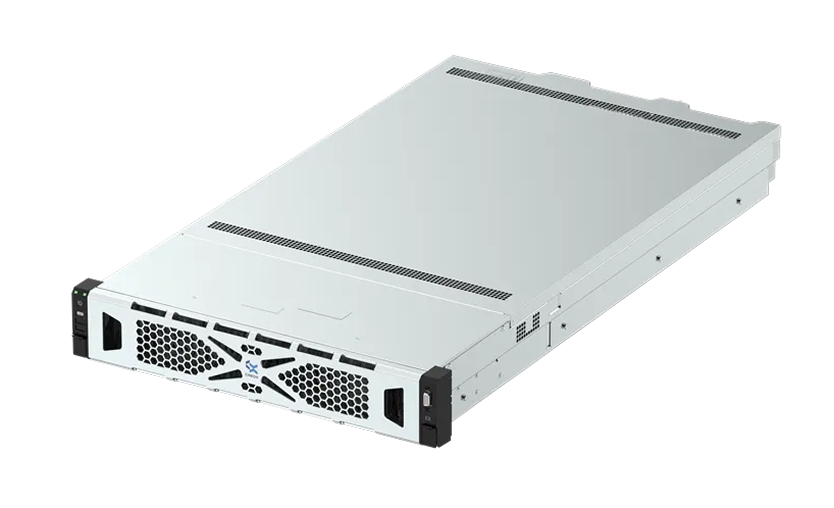

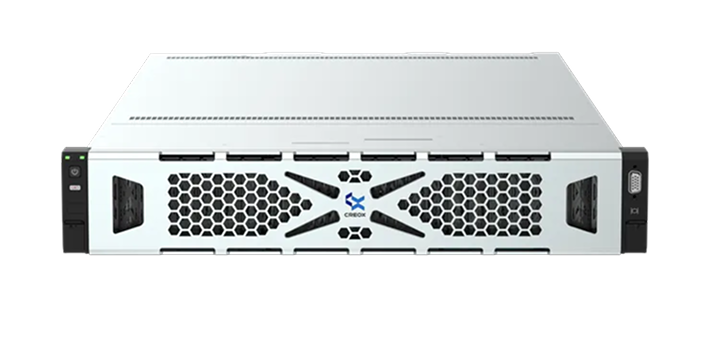

The C60X5 is a 2U general-purpose server built on the Intel® Eagle Stream platform, supporting 4th and 5th Gen Intel® Xeon® Scalable Processors with up to 64 CPU cores — delivering up to 60% more performance compared to the previous generation.
With support for DDR5 memory and PCIe 5.0, the C60X5 provides outstanding bandwidth and scalability for modern compute-intensive workloads.
Cloud & Virtualization, Big Data Analytics, AI Inference
| CPU | 2* Intel® Xeon® 4th&5th SPR/EMR Processors up to 350W | |
| Memory | Up to 32* DDR5 DIMM Slots, up to 5600MT/s, support RDIMMs & LRDIMMs | |
|
Storage
|
(FRONT)
|
12* LFF SATA/SAS/NVMe |
| 24* SFF SATA/SAS/NVMe | ||
|
|
Internal: 2 * 2280 M.2 (SATA/NVMe) onboard slots | |
| Rear: 4 * SFF SATA/SAS/NVMe | ||
| PCIe Extension | Option1: 2* PCIe5.0 x16 FHFL + 4* PCIe4.0 x8 FHHL Option2: 2* PCIe5.0 x16 FHHL + 2* PCIe4.0 x8 FHHL + 2* PCIe4.0 x6 FHHL OCP3.0 |
|
| Enclosure Management | BMC: AST2600, 1* dedicated RJ45 MGMT port | |
|
IO
|
Front IO
|
2* USB3.0 Type-A Receptacles |
| 1* PWR BTN with 1* PWR Indicator | ||
| 1* Status LED | ||
| 1* VGA | ||
| 1* UID button & LED | ||
|
Rear IO
|
2 * USB3.0 Type-A Receptacles | |
| 1 * VGA | ||
| 1 * UART Port Over RJ45 | ||
| 1* UID button & LED | ||
| 2 * 1000 BASE-T onboard LAN Ports | ||
| 1 * GbE MGMT Port (Not both Front MGMT Ports) | ||
| Cooling | 4* 8056 FANs, N+1 Redundancy | |
| Operating Temp. | 5∘C−35∘C | |
| PSU | 1+1 Redundancy (1300W/1600W/2000W) | |
| Dimension | 86mm(H)×447mm(W)×815mm(D) | |
