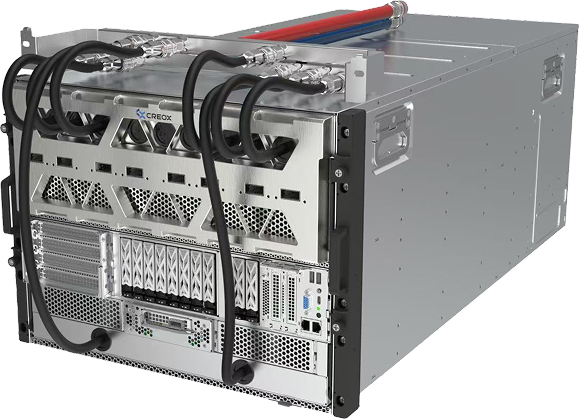

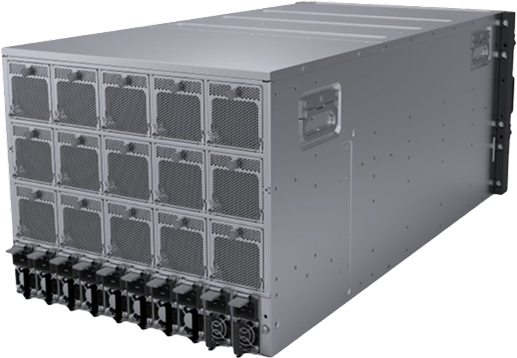

The A96X6-Q is an 8U AI server for the B300 platform, featuring liquid-cooling architecture optimized for extreme AI and HPC workloads. Powered by 6th Generation Intel® Xeon® Scalable Processors (Granite Rapids) on the Birch Stream platform, it ensures high compute density with superior thermal efficiency.
Built for cloud datacenters and enterprise AI environments, the A96X6-Q offers unmatched reliability, energy efficiency, and scalability for next-generation AI operations.
AI cloud computing, LLM Training, Inference, HPC
| CPU | 2* Intel® Xeon 6700E/6500P/6700P Processor up to 350W |
| GPU | 8* HGX B300 liquid cooling |
| Memory | Up to 32* DDR5 DIMM Slot, support RDIMM up to 6400MT/s |
| Storage | 8* SFF NVMe slot (from switch) 2* SFF SATA/Nvme slot (from CPU, SATA need Add-in RAID card) Option: Internal: 2* 2280 M.2 slot(Add-in riser card) |
| PCIe Extension | Front PCIe Slot: 8* X16 FHHL/HHHL (from switch) Front PCIe Slot: 2* X16 FHHL (from CPU) |
| Enclosure Management | BMC: AST2600, 1* dedicated RJ45 MGMT port |
| IO | 2* USB3.0 Type-A Receptacle 1* PWR BTN with 1* PWR Indicator 1* Status LED 1* VGA 1* UART Port Over Type C 1* UID button& LED 1* GbE MGMT Port |
| Cooling | 13* 8086 FANs, N+1 Redundant |
| Operating Temp. | 5oC – 35oC |
| PSU | 2* 185mm Redundant 2700W HVDC/AC Input, 12V Output PSUs 8* 185mm Redundant 3200W HVDC/AC Input, 54V Output PSUs |
| Dimension | 352mm (H) x 448mm (W) x 900mm (D) |
